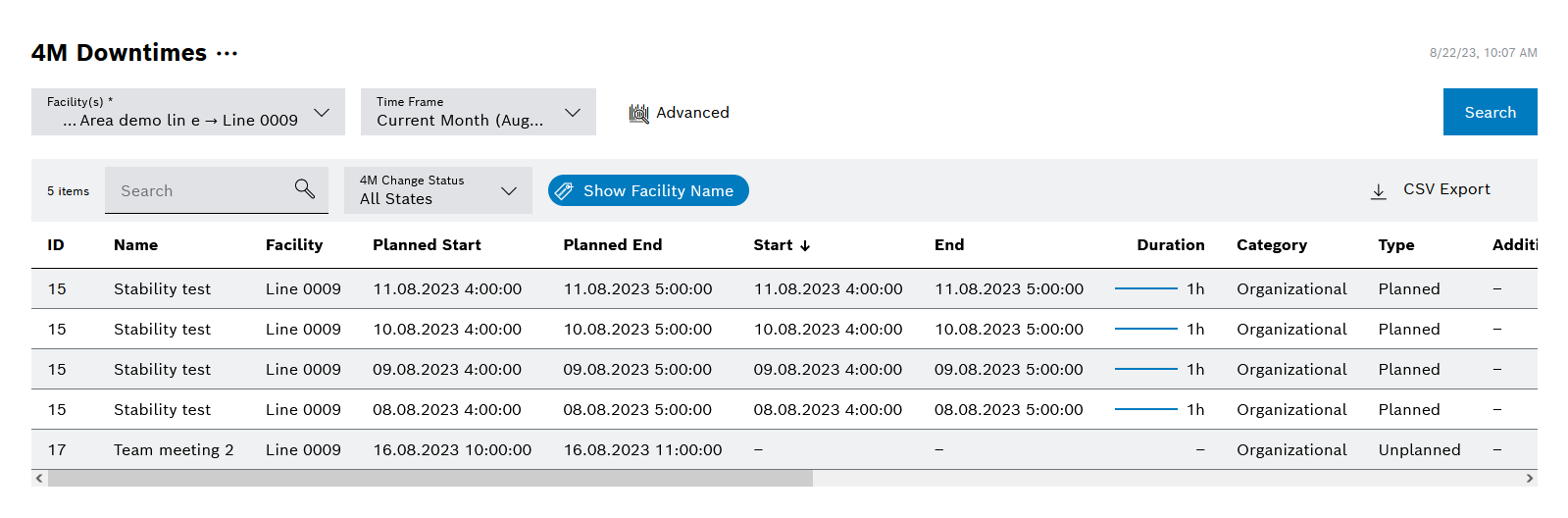

The 4M Downtimes Overview report lists 4M downtimes. 4M downtimes are used for changes to the production line.
This report is only available if the Enable 4M Downtime Categories checkbox has been activated in Shopfloor Management Administration > Configuration.
Element |
Description |
|---|---|
ID |
ID of the 4M downtime cause that occurred |
Name |
Name of the 4M downtime cause that occurred |
Facility |
Facility at which the 4M downtime occurred |
Planned Start |
Planned start time of the 4M downtime |
Planned End |
Planned end time of the 4M downtime |
Start |
Actual start time of the 4M downtime |
End |
Actual end time of the 4M downtime |
Duration |
Duration of the 4M downtime |
Category |
Category of the downtime cause: Technical, organizational, changeover-related or quality |
Type |
Type of the 4M downtime cause: Planned or unplanned |
Additional information |
Description of the 4M downtime |
4M Category |
4M category: Man, machine, method or material |
4M Change Status |
Current status of the planned change: Created, performed or confirmed |
Check (Method/Result) |
Free text field for the description of the change |
Created by |
Person who created the 4M downtime |
Executed by |
Person who executed the 4M downtime |
Confirmed by |
Person who checked the 4M downtime following the execution |
Table filters
Element |
Description |
|---|---|
Search |
Entry of the search term The search is performed in the following columns:
|
4M Change Status |
Filter by confirmation status:
|
Show Facility Name |
Displays the self-assigned name or facility ID |
The
CSV-Export button can be used to export the entries for further processing.
