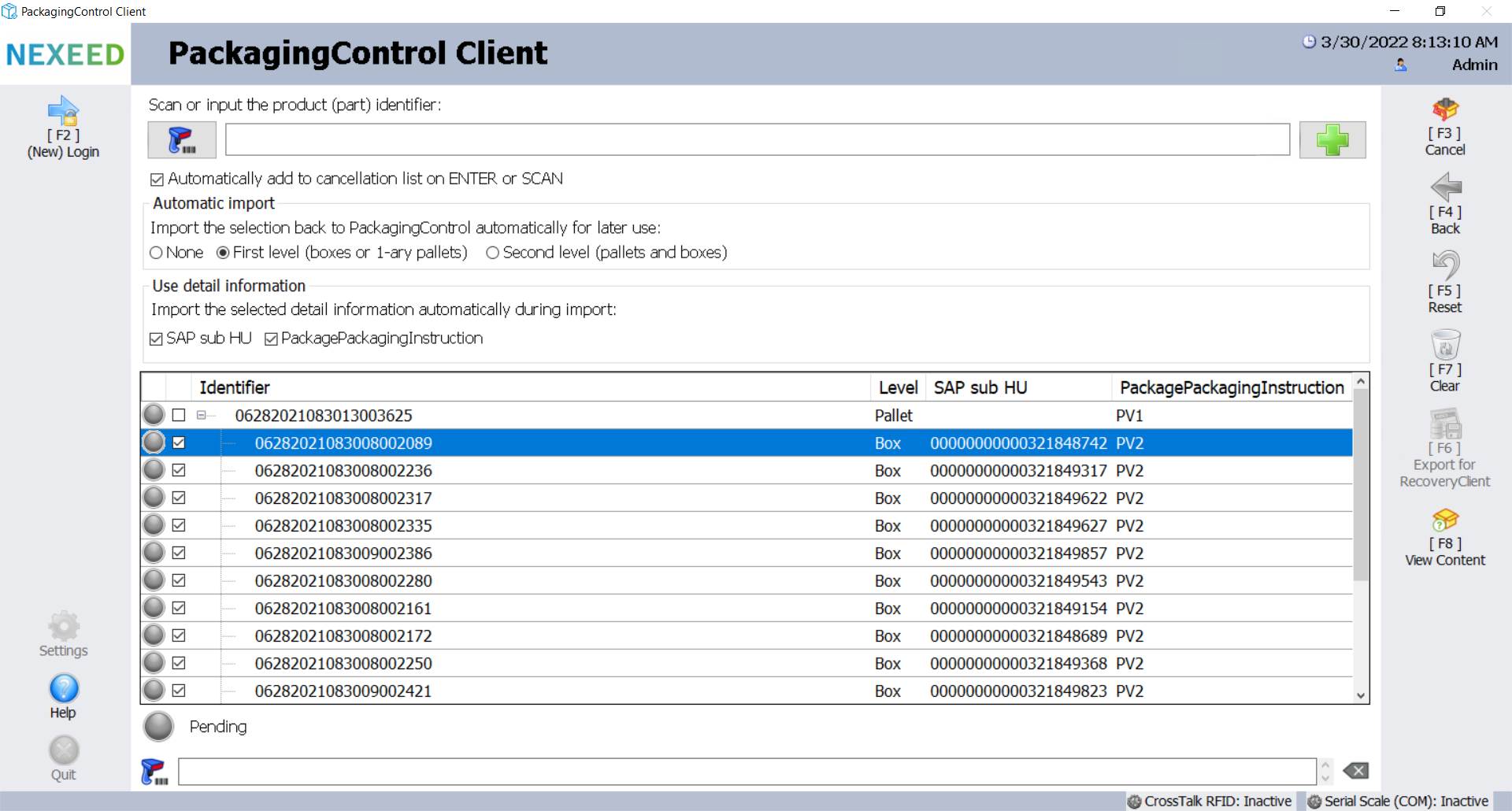

The cancellation form (window) for packing units can be used to enter a list of packing units that are subsequently canceled, regardless of whether they are boxes with products or pallets.
The number of packing units that can be canceled at the same time is not limited. Once all packages to be canceled have been sorted, they can be canceled together.
The overall outcome of the cancellation process is displayed on the bottom left. The following results are possible:
Element/icon |
Description |
|---|---|
|
Outstanding: The individual products have not yet been canceled (initial status). |
|
All successful: All products have been canceled successfully. |
|
Some failed: Some individual products have failed, others have been canceled successfully. |
|
All failed: No product has been successfully canceled. |
The individual results are also represented by similar symbols. In the event of an error, a column with a description of the error is displayed in addition to the identifier of the packing unit.
The corresponding products (parts) can be repacked after cancelation. The user can select whether the canceled packing units and their additional information are to be imported back into PackagingControl.
All boxes in the list or all pallets and the boxes in it can be selected automatically.
All available additional information is displayed dynamically and can be deselected individually.
A column with all available content is displayed for each item of additional information selected.
The form offers the following options:
Element/icon |
Description |
|---|---|
|
Calls up the scanning form. After scanning, the identifier is displayed in the text box or added to the list, depending on which option has been activated. |
|
The specified or scanned packing unit and its sub-packing units are added to the list. |
Import Automatically |
Sets a check mark for all packing units for the respective packing type so that they are imported back into PackagingControl and marked as available for further processing. |
Use Additional Information |
At least one type of additional information that is transferred during the import together with the corresponding packing units. |
[F3] Cancel |
Performs the cancellation for all listed packing units. |
[F4] Back |
Exits the form and returns to the cancellation wizard. |
[F5] Reset |
Resets the form to the initial state. |
[F7] Clear |
Removes the list entries, but retains all settings. |
[F6] Export for RecoveryClient |
Exports the products (parts) contained in the canceled packing units for import into RecoveryClient. |
[F8] Show content |
Displays the contents of the selected packing unit. |
Enter Cancellation Reason
Before the packing units are canceled, the user is prompted to specify a reason for the cancellation. Once the reason has been entered, the cancellation process can be completed by pressing the Enter key or by clicking the "OK" button.
A reason can be optionally entered.
Display the contents of the selected packing unit
To display the contents of a packing unit, select the packing unit and press function key [F8].
Double-clicking on the packing unit also activates the function for displaying contents. The following window opens and displays the contents:
