Create material definition

In the Material definition tab, click .

The Create material definition dialog appears.

1. Enter information in the Material definitions tab:
   • In the Material number text field, enter the number of the material definition.
   • In the Material name text field, enter the name of the material definition.
   • In the Material type text field, enter the type of the material definition
   • In the Description text field, enter the description of the material definition.
2. Click Add.
3. Click the Translations tab.
4. In the Translations tab, add or edit the translations in the supported languages.



5. Click Save.

The new material definition appears in the selection list and is selected.

Edit material definition

1. In the Material definitions tab, click a material definition.

   The material definition is selected.

2. In the working area, click .

   The Edit material definition dialog appears.



3. Make changes in the Material definition tab:
   • In the Material name text field, edit the name of the material definition
   • In the Material type text field, edit the type of the material definition
   • In the Description text field, edit the description of the material definition

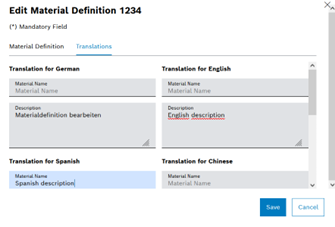

4. In the Translations tab, add or edit the translations in the supported languages.
5. Click Save.

The edits to the material definition are saved

Creating a Property

1. In the Material definitions tab, click a material definition. The material definition is selected.

   The material definition information and the list of properties appear in the right-hand area.

2. Under Properties, click .

   The Create property dialog opens.



3. Enter details:
   • In the Name input field, type the name of the property to be created.
   • A brief description of the property can be entered in the Description input field.
   • In the Data type drop-down list, you can specify the data type of the property (string, number, yes/no selection or date + time).
   • In the Value input field, you can enter the value to be used automatically for all newly created material definitions.
4. Click Add.

The new property of the material definition appears under Properties.
