Downloading Diagnostic Data of a Device

Diagnostic data previously uploaded to the device can be downloaded from the Device Portal and saved locally. The number of available diagnostic data of a device is limited to 10.

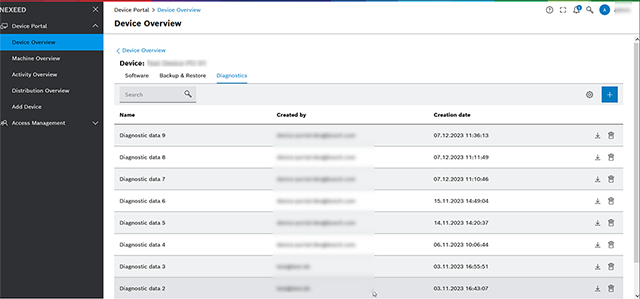

1. Click Download on the right side of the table to download the desired diagnostic data.
   • Click Delete on the right side of the table to delete the desired diagnostic data.

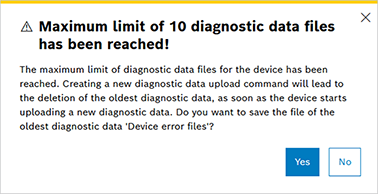

     If the maximum number of diagnostic data for a device has been reached, the following dialog opens.



   • Clicking on Yes automatically saves the oldest diagnostic data locally and opens the dialog for uploading diagnostic data. As soon as new data has been created here, the oldest diagnostic data is deleted.
   • Clicking No results in the oldest diagnostic data not being saved automatically and opens the dialog for uploading diagnostic data. As soon as new data has been created here, the oldest diagnostic data is deleted.
   • Clicking on X cancels the entire process and closes the dialog.

The downloaded diagnostic data is now available locally in the Downloads folder for further processing.
