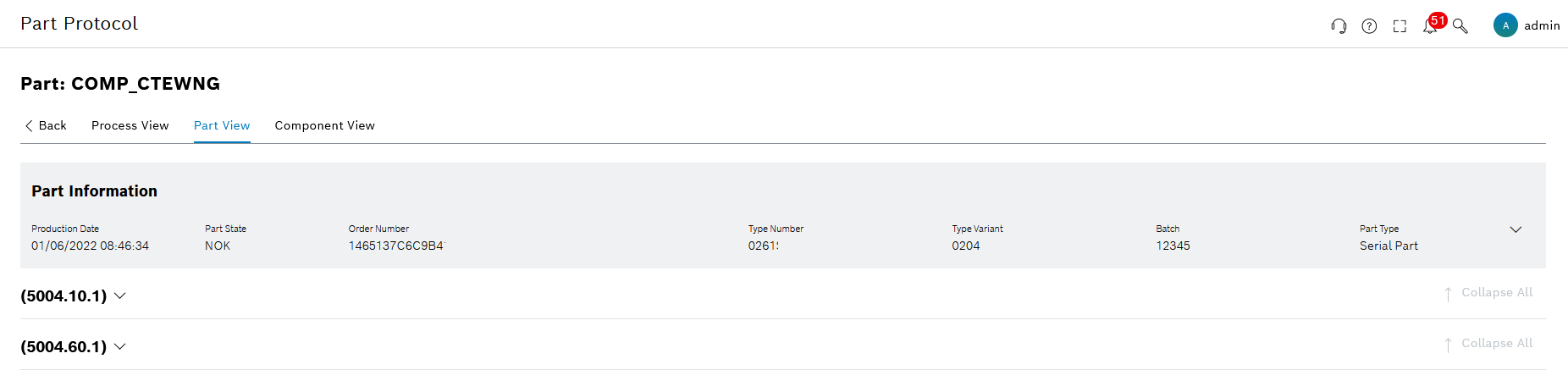

Part View tab

The order of the facilities and processes in the view depends on the Result date.

The Part View is displayed by default when a Part ID of an entry is clicked in an evaluation.

The Part View displays the following detailed data for a part:

• Part Information: Part Header
• List of facilities at which the part was processed.

To view more details:

• Expand part header: Part Header
• Expand Facility: The list of processes that the part has undergone at the respective facility is shown.

  Expand process: Process information.

If a part is set for plant, product and area, the entire ID is displayed: <Werk>.<Produkt>.<Bereich>.<Linie>.<Einrichtung>.<Einrichtungsindex>

Call

Option 1

Click on a Part ID in an evaluation or results list.

Option 2

• Call up the Packaging Information menu and create an evaluation: Packaging Information.
• Click on a Pallet Number in the evaluation.
• Click on a Box Number in the Dialog — Pallet:
• Click on a Part ID in the Dialog — Box.

Option 3

• Call up the Packaging Information menu and create an evaluation: Packaging Information.
• Click on a Box Number in the evaluation.
• Click on a Part ID in the Dialog — Box.
