Edit parameter value

Prerequisites

• Production area, product family, product and variant(s) have been created. Product tab
• Dataset structure, structure element and parameters have been created. Configurator tab
• Dataset has been added to the variant.

Procedure

1. Click in the Production Area & Product Family search box in the Editor tab.
2. In the Production Area drop-down list, select a production area by activating the checkbox and click .
3. In the Product Family drop-down list, select a product family by activating the checkbox.
4. Click on a variant in the list.
5. Click in the row of the dataset in the detailed view.
6. Click on a structure element in the list.
7. In the detailed view, edit the value in the row of the parameter.
8. Click Save in the detailed view.

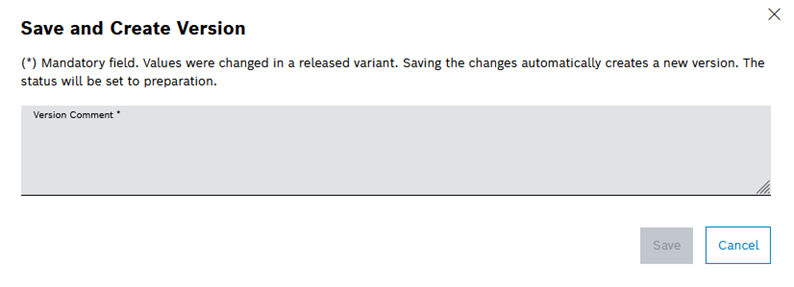

9. Enter a version comment in the Save and Create Version dialog window.



10. Click Save.

The parameter value is edited.
