Book unit loads in and out via QR code

The booking in and out of unit loads depends on the configuration type of the supermarket (classic, semi-intelligent or intelligent with mobile scanner).
Overview: Supermarket Configuration Area

Prerequisites

• Stock role Management Administrator or Stock Management Logistics Planner or Stock Management Shopfloor associate
• Codes that can be read with the scanner are available at the supermarket, unit load and, if applicable, lane.

Procedure

1. Select the Camera scanner type.

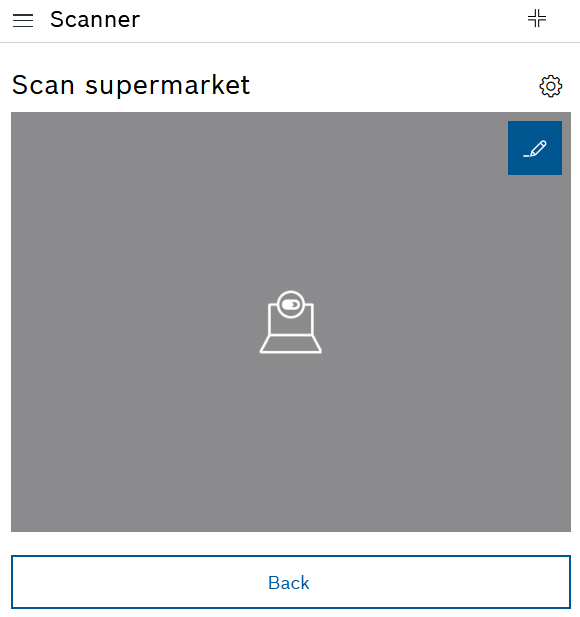

2. Scan the QR code of the physical supermarket on the filling side for bookings in or on the removal side for bookings out.

   Nexeed Stock Management automatically detects whether the operation concerned is a booking in or booking out.

   Or:
   To manually enter the supermarket, tap and continue as described in Manually booking in and out unit loads.

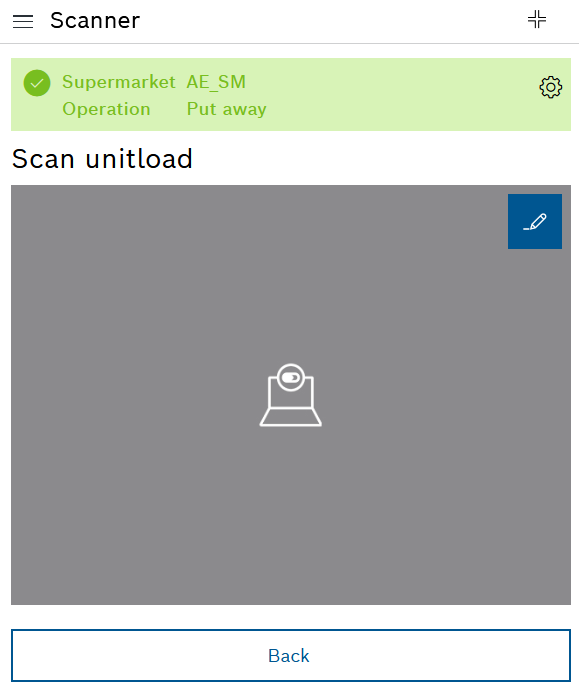

3. Scan the code of the desired unit load.
   Or:
   To manually enter the code of the unit load, tap and continue as described in Manually booking in and out unit loads.



   If the supermarket has the configuration type Semi-intelligent or Intelligent with mobile scanner, the information area indicates the lane in which the unit load is to be placed or removed.

Continue according to the configuration type of the supermarket.

Classic configuration type

If the supermarket has the configuration type Classic, perform the following steps:

1. Scan the code of the lane on which the removal or booking in is to take place.
   Or:
   To manually enter the code of the lane, tap and enter the code in the Enter lane ID text field.
   Continue with Next.
   Manually booking in and out unit loads
2. Park the unit load in the desired lane or remove it from the desired lane.

The booking in or booking out has been completed. The information area confirms which unit load has been booked into which lane. The graphical representation of the supermarket shows the current number of unit loads on the lane.

Configuration type semi-intelligent or intelligent with mobile scanner

If the supermarket has the configuration type Semi-intelligent or Intelligent with mobile scanner, perform the following steps:

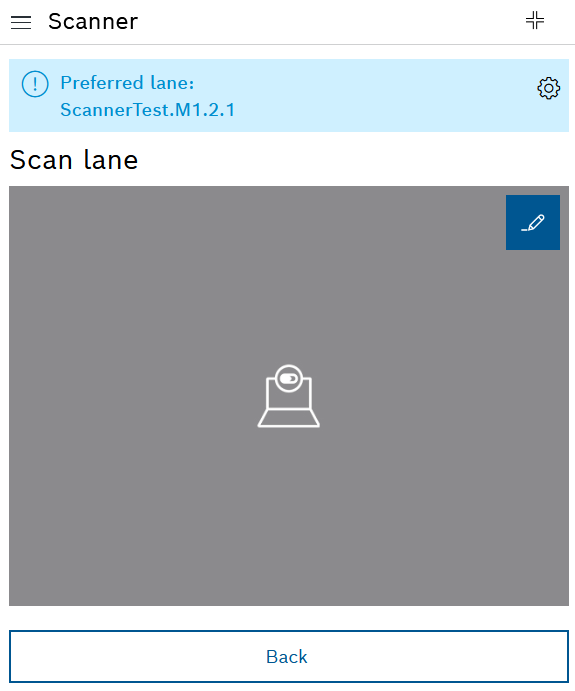

1. Scan the code of the lane indicated as the preferred lane in the information bar.
   Or:
   To manually enter the preferred lane, tap and enter the code in the Enter lane ID text field.
   Continue with Next.
   Manually booking in and out unit loads
2. Park the unit load in the preferred lane or remove it from the preferred lane.

   In the case of a supermarket with the configuration type Intelligent with mobile scanner, a green LED lights up on the preferred lane. The system detects when the unit load has been deposited in the correct physical lane or removed from the correct physical lane.

The booking in or booking out has been completed. The information area confirms which unit load has been booked into which lane. The graphical representation of the supermarket shows the current number of unit loadts on the lane.

• To book unit loads in or out by scanning a bar code, continue with Book unit loads in or out via bar code.
• To book unit loads in or out manually, continue with Manually booking in and out unit loads.
