Extended Search — Batch ID Components

The Extended Search > Batch ID Components of the Forward Search is used to display all parts in which a certain Batch ID Component is installed.

Search Form

Call up the Part Traceability > Forward Search > Extended Search tab and select the Batch ID Components option.

pt_forward_search_extended_search_batch

General information on handling the search parameters: Search Forms for Creating an Evaluation.

Element/icon	Description
Component Type	Enter Component Type.
Time Frame	Define Time Frame via the calendar..
Part State	Select Part State: Part status Default configuration: All States
Part Type Number	Enter Part Type Number.
Component Type Number	Enter Part Type Number of the Component.

Component Material ID	Enter the Identification Number of the Component Material.
Component Batch ID	Enter Batch Identification Number of the Component.
Component Position	Enter Component Position, e.g. the component position of the wafer.
Component Manufacturer	Enter the Component Manufacturer
	Click to create the evaluation

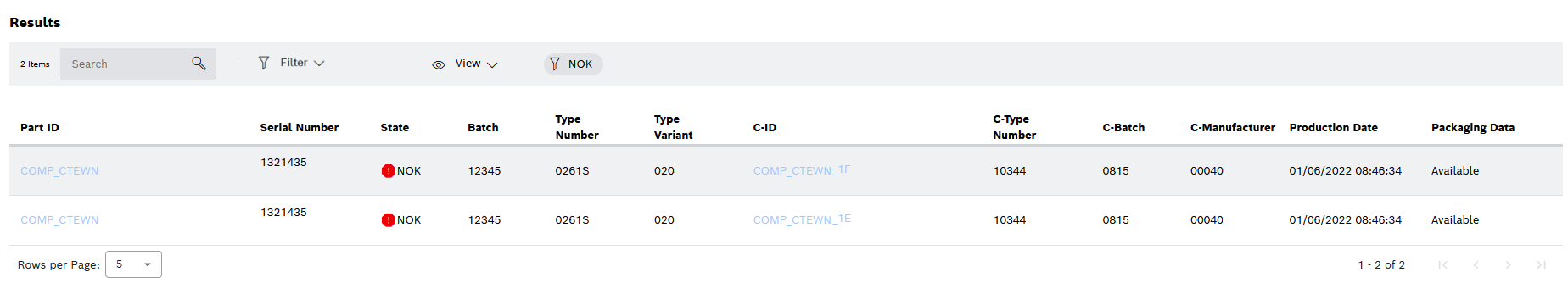

Results list of evaluation — General Information

In the header, the General Information view is selected.

pt_result_comp_general

To restrict the entries, use the filter option: Filter.
To sort the evaluation, click on a column title.
To display the component information, click on the Part ID in the respective row: Component View tab.
To display the part information for a Component ID, click on the C-ID in the respective row: Part View tab.

Results list of evaluation — Packaging Information

In the header, the Packaging Information view is selected.

pt_pp_results_package

To restrict the entries, use the filter option: Filter.
To sort the evaluation, click on a column title.
To display the part information for a part, click on the Part ID or on in the respective row: Part View tab.
